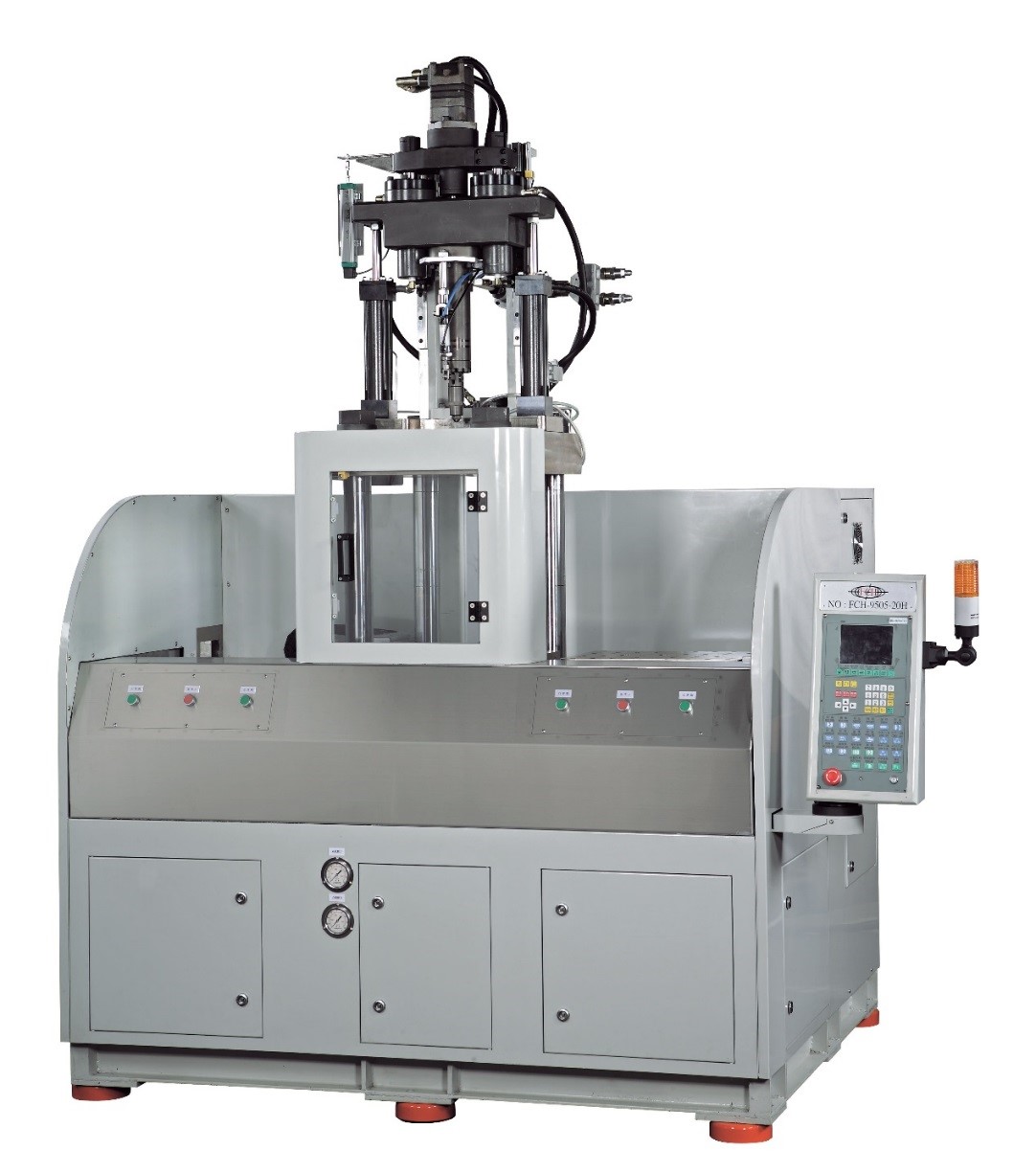

LED 封裝射出設備FH-20L FH-50LA
LED Package Injection Moulding Machine
綠色節能 環保減碳
Energy Saving, Reduce Consumption
VA Micro Series
.jpg)
LED矽膠封裝射出設備規格說明: Specifications
|
射出單元: Injection Unit |
FH-50LA |
||||
|
理論射出容量Theorectical injecting vol. |
23 |
cm3 |
|||
|
實際射出重量Actual injecting cap. |
30 |
g |
|||
|
最高射出壓力Max. injecting pressure |
1750 |
kg/ cm2 |
|||
|
射出率Injecting capacity |
25 |
cm3 / sec |
|||
|
螺桿直徑Screw dia. |
18 |
mm |
|||
|
螺桿細長比 L/D ratio |
20.5 |
|
|||
|
螺桿轉數/最大扭矩Max. rpm / Max. torque |
260/35 |
rpm / kg. |
|||
|
射出行程 Injecting stroke |
120 |
mm |
|||
|
射座行程 Injecting base stroke |
190 |
mm |
|||
|
噴嘴封閉力 Injecting nozzle closed force |
2.77 |
ton |
|||
|
鎖模單元: Moulding Locking Unit |
|
||||
|
鎖模力 Moulding locking force |
50 |
ton |
|||
|
最大開模行程 Max. daylight |
200 |
mm |
|||
|
模板全開距離 Full opening of platen |
425 |
mm |
|||
|
容積厚度 (最小 - 最大) Moulding permissible thickness. (Min-Max.) |
225~500 |
mm |
|||
|
模板尺寸 (水平*垂直) Moulding size ( H*V) |
500*550 |
mm |
|||
|
柱內尺寸 (水平*垂直) Inner column size (H*V) |
420*510 |
mm |
|||
|
頂出行程 Plunging stroke |
170 |
mm |
|||
|
頂出力 Plunging force |
1.7 |
ton |
|||
|
一般說明: General Description |
|
||||
|
伺服馬達 Pump Servo Motor |
5 |
kw |
|||
|
液泵吐出量 |
46 |
1 / min |
|||
|
油槽容積 Hyd. oil tunnel |
90 |
l |
|||
|
最大系統壓力 Max. system pressure |
140 |
kg/ cm2 |
|||
|
機械淨重 Machine wt. |
3.8 |
ton |
|||
|
機械尺寸 Machine size |
1.8*1.3*2.6 |
m |
|||
