HS液態矽膠射出成型系統
HS ACQU-Liquid Silicone Rubber Injection Moulding System
臥式射出成型: 適合大量生產、提高獲利、縮短製程時間、一次成型、節省加工成本
LSR Horizontal injection Moulding Machine which is suitable for mass production & making profit advance, reduce processing time & one time molding.

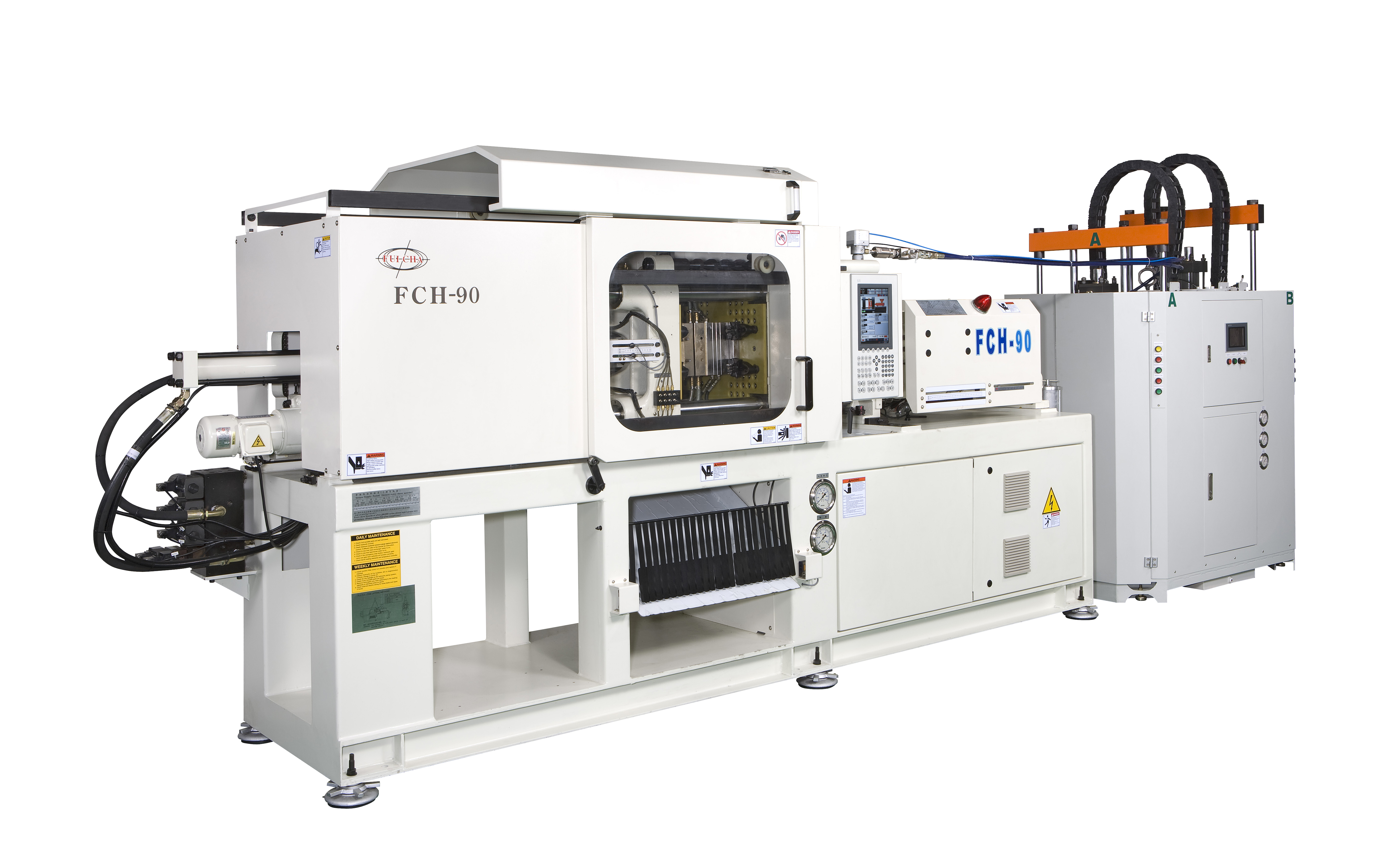

LSR Injection Machine
HS液態矽膠射出成型系統設備規格說明: Lsr injecton moulding Specifications
|
射出單元: LSR Injection Unit |
FCH-90LSR |
FCH-120LSR |
FCH-140LSR | ||||||
|
理論射出容量 |
113 |
145 |
181 |
145 |
181 |
222 |
204 | 249 | 325 |
|
實際射出重量Actual injecting cap. |
106 |
137 |
171 |
137 |
171 |
209 |
193 | 235 | 307 |
|
最高射出壓力 |
2310 |
1798 |
1439 |
1798 |
1439 |
1178 |
2079 | 1702 | 1303 |
|
射出能力Injecting capacity |
79 |
101 |
126 |
101 |
126 |
154 |
103 | 125 | 163 |
|
螺桿直徑Screw dia. |
30 |
34 |
38 |
34 |
38 |
42 |
38 | 42 | 48 |
|
長徑比 L/D ratio |
22.5 |
20 |
18 |
22 |
20 |
19 |
22 | 20 | 18 |
|
最高迴轉數/最大扭矩 |
260/80 |
260/60 |
273/80 | ||||||
|
射出行程 LSR Injecting stroke |
160 |
160 |
180 | ||||||
|
射座行程LSR Injecting base stroke |
255 |
280 |
300 | ||||||
|
噴嘴封閉力 |
2.77 |
2.77 |
3.4 | ||||||
|
模具Mold |
20 |
20 |
20 | ||||||
|
鎖模單元: |
|
|
|||||||
|
鎖模力 Moulding locking force |
90 |
120 |
140 | ||||||
|
最大開模行程Max. daylight |
300 |
350 |
350 | ||||||
|
模板全開距離 |
700 |
800 |
800 | ||||||
|
容積厚度 (最小 - 最大) Moulding permissible thickness. (Min-Max.) |
100 - 400 |
120 - 450 |
120 - 450 | ||||||
|
模板尺寸 (水平*垂直) |
550*550 |
620*620 |
620*620 | ||||||
|
柱內尺寸 (水平*垂直) Inner column size (H*V) |
360*360 |
410*410 |
410*410 | ||||||
|
頂出行程 Plunging stroke |
85 |
100 |
100 | ||||||
|
頂出力 Plunging force |
2.8 |
3.3 |
3.3 | ||||||
|
一般說明: General Description |
|
|
|||||||
|
油壓液泵馬達 Hyd. Pump motor |
20(15) |
20(15) |
25(18.5) | ||||||
|
油槽容積 Hyd. oil tunnel |
150 |
150 |
195 | ||||||
|
最大系統壓力 |
140 |
140 |
140 | ||||||
|
機械淨重 Machine wt. |
3.6 |
3.8 |
4.6 | ||||||
|
機械尺寸 Machine size |
4.2*1.2*1.8 |
4.4*1.2*1.8 |
4.6*1.2*1.8 | ||||||
